The IQS620(A) ProxFusion® IC is a multifunctional capacitance, Hall-effect & inductance sensor designed for applications where any or all of the technologies may be required. The  IQS620(A) is an ultra-low power solution designed for short or long term activations through any of the sensing channels. The IQS620(A) is fully I2C compatible and can be configured to output main trigger events on GPIOs.

Iqs620 Desc

Features:

  • Unique combination of sensing technologies:
    • Capacitive sensing
    • Hall-effect sensing
    • Inductive sensing
  • Capacitive sensing:
    • Full auto-tuning with adjustable sensitivity
    • 2pF to 200pF external capacitive load capability
  • Hall-effect sensing:
    • On-chip Hall-effect measurement plates
    • Dual direction Hall switch sensor UI
    • 2 level detection (widely variable)
    • Detection range 10mT – 200mT
  • Inductive sensing:
    • 2 level detection and hysteresis for inductive sensing
    • Only external sense coil required (PCB trace)
  • Low power consumption:
    • 90uA (100Hz response, 3ch capacitive)
    • 32uA (20Hz response, 3ch capacitive)
    • 2.5uA (4Hz response, 1ch cap. wake-up)
  • Multiple integrated UI options based on years of experience in sensing on fixed and mobile platforms:
  • Proximity wake-up/Touch
  • SAR
  • Automatic Tuning Implementation (ATI) – performance enhancement (10bit)
  • Minimal external components
  • Standard I2C interface (polling with sub 1ms clock stretching)
  • Optional RDY indication for event mode operation
  • Supply voltage:
    • IQS620: 2.0V to 3.3V
    • IQS620A: 1.8V to 3.3V
  • Low profile packages:
    • DFN(3x3) - 10 pin package
    • WLCSP - 9 pin package
Applications:
  • Mobile electronics (phones/tablets)
  • SAR safety requirements for laptops, tablets and phones
  • Wearable devices
  • White goods and appliances
  • Human Interface Devices
  • Proximity activated backlighting
  • Applications with long-term activation
  • Aftermarket automotive
Let us help you implement your IQS620(A).
We’ve done it before.
If you don’t believe us test it yourself.

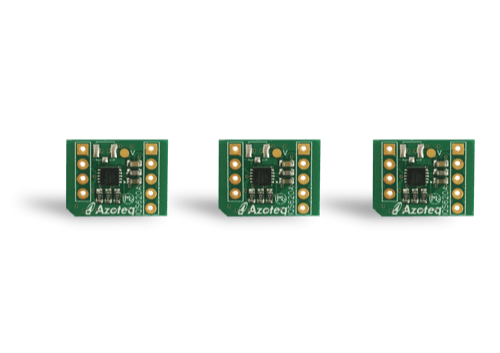

Includes 3x IQS620A Stamp modules.
Embed into custom design and interface to host MCU to evaluate capacitive, inductive and hall-effect functions.

NOTE: Arduino Uno/ST Nucleo not included. CT210/A and IQS62x Shield board sold separately.

Iqs620a Ev01 Azoteq Product Evaluation Kits

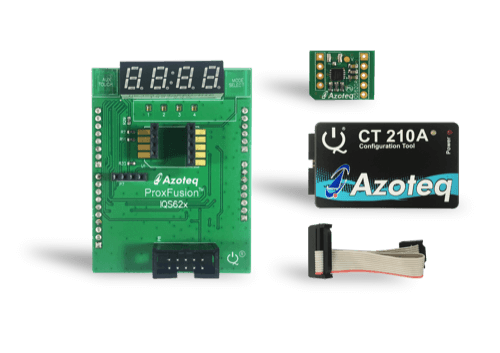

Includes 1x IQS62x Shield board and 1x IQS620A Stamp module. Plug Shield board and Stamp module into Arduino Uno/ST Nucleo to evaluate capacitive, inductive and hall-effects functions. Alternatively, connect with CT210/A directly to PC GUI.

 NOTE: Arduino Uno/ST Nucleo not included. CT210/A sold separately.

Iqs620a Ev02 Azoteq Product Evaluation Kits

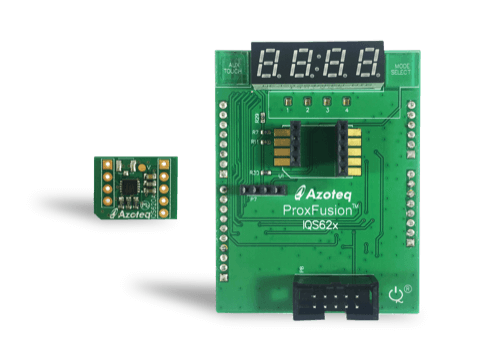

Includes 1x IQS62x Shield board, 1x IQS620A Stamp module and 1x CT210/A.
Plug Shield board and Stamp module into Arduino Uno/ST Nucleo and/or into PC via CT210/A to evaluate capacitive, inductive and hall-effects features with GUI software.

 NOTE: Arduino Uno/ST Nucleo not included.

Iqs620a Ev04 Azoteq Product Evaluation Kits

Azoteq provides software used for the serial streaming of data to a computer utilising the Azoteq USB-dongles. Each IC has its own dedicated software and is intended for prototyping purposes and can be found on the Azoteq website under Software and Tools.
