The IQS7222A ProxFusion® IC is a sensor fusion device for applications that require multiple sensing capabilities from a single sensor IC. The sensor is fully I2C compatible and on-chip calculations enable multiple application options. Various UIs from gestures to power mode switching allows the IC to respond effectively in the intended application with ultra-low power consumption.

Main Features

  • Highly flexible ProxFusion® device
  • 12 sensor pad connections (QFN-20) / 10 sensor pad connections (WLCSP-18)
  • Configure up to 9 Channels using the external connections or internal sensor
  • External sensor options:
    • Up to 8 self capacitive touch / proximity sensing channels
    • Up to 9 projected capacitive touch / proximity sensing channels
    • Up to 4 inductive sensing channels
  • Internal sensor option:
    • Hall-effect switch
  • Built-in basic functions:
    • Automatic tuning
    • Noise filtering
    • Differential measurements (reference channels)
    • Debounce & hysteresis
    • Dual direction trigger indication
  • Built-in Signal processing options:
    • Slider output (0-255)
    • Wheel output (0-255)
    • Gesture functions (swipe, tap, hold)
    • Movement detection
  • Design simplicity
    • PC Software for debugging and obtaining optimal settings and performance
    • One-time programmable settings for custom power-on IC configuration
    • Auto-run from programmed settings for simplified integration
  •  Automated system power modes for optimal response vs consumption
  • I2C communication interface with IRQ/RDY(up to fast plus -1MHz)
  • Event and streaming modes
  • Customizable user interface due to programmable memory
  • Supply Voltage 1.8V(-5%)to 3.5V
  • Small packages
    • WLCSP18 (1.62 x 1.62 x 0.5 mm) - interleaved 0.4mm x 0.6mm ball pitch
    • QFN20 (3 x 3 x 0.5 mm) - 0.4mm pitch


  • SAR compliance in mobile devices
  • Wear detection
  • Multiple slider, wheel & button designs
  • Waterproof inductive buttons
  • Low power wake-up buttons / proximity
  • Hall-effect dock detection
We’ve done it before.
If you don’t believe us test it yourself.

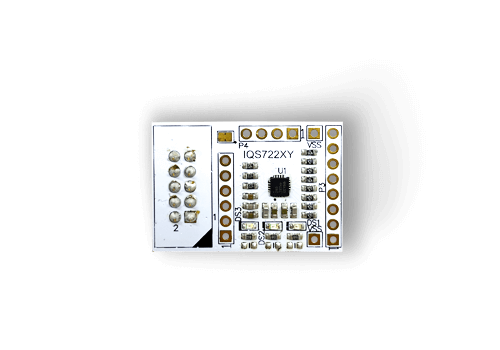

  • 1x IQS7222A stamp

Embed into custom design and interface to host MCU to evaluate capacitive functions.

NOTE: Arduino Uno/ST Nucleo not included. CT210/A sold separately.

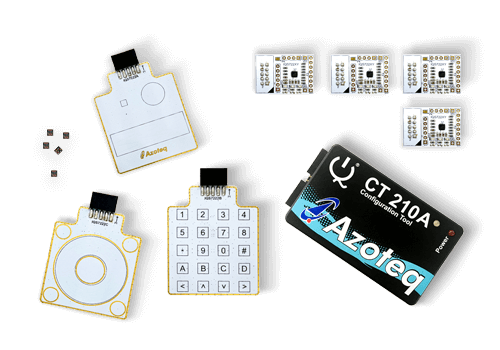

  • 1x IQS7222A Stamp
  • 1x IQS7222B Stamp
  • 1x IQS7222C Stamp
  • 1x IQS7222D Stamp
  • 1x Twenty button plugin
  • 1x Buttoned scroll plugin
  • 1x Inductive coil and slider plugin
  • 5x IQS7222X Chips
  • 1x CT210A debug and display tool

Connect the plugins to your computer via CT210/A to evaluate capacitive and inductive functions with our GUI software.

NOTE: Arduino Uno/ST Nucleo not included.

Azoteq provides software used for the serial streaming of data to a computer utilising the Azoteq USB-dongles. Each IC has its own dedicated software and is intended for prototyping purposes and can be found on the Azoteq website under Software and Tools.
