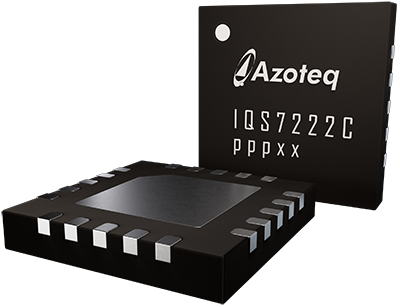

The IQS7222C ProxFusion® IC is a sensor fusion device for various multi-button applications. The sensor is fully I2C compatible and on-chip calculations enable the IC to respond effectively even in lowest power modes.

Main Features

  • Highly flexible ProxFusion® device
  • 9 (QFN) / 8 (WLCSP) external sensor pad connections
  • Configure up to 10 Channels using the external connections
  • External sensor options:
    • Up to 8 self capacitive buttons
    • Up to 4 self capacitive wear detection pairs (with physical reference)
    • Up to 10 projected capacitive touch/proximity sensors
    • Up to 4 inductive sensor elements
  • Built-in basic functions:
    • Automatic tuning
    • Noise filtering
    • Differential measurements (reference channels)
    • Debounce & Hysteresis
    • Dual direction trigger indication
  • Built-in Signal processing options:
    • Slider output
    • Wheel output
  • Design simplicity
    • PC Software for debugging and obtaining optimal settings and performance
    • One-time programmable settings for custom power-on IC configuration
    • Auto-run from programmed settings for simplified integration
  • Automated system power modes for optimal response vs consumption
  • I2C communication interface with IRQ/RDY(up to fast plus -1MHz)
  • Event and streaming modes
  • Customizable user interface due to programmable memory
  • Supply Voltage 1.8V(-5%)to 3.5V
  • Small packages
    • WLCSP18 (1.62 x 1.62 x 0.5 mm) - interleaved 0.4mm x 0.6mm ball pitch
    • QFN20 (3 x 3 x 0.5 mm) - 0.4mm pitch


  • SAR Compliance in Mobile devices
  • Waterproof Buttons (Inductive)
  • Wear Detection
  • Low power Wake-up Buttons / Proximity
  • Appliance user interface (Sliders, Wheels & Buttons)
We’ve done it before.
If you don’t believe us test it yourself.

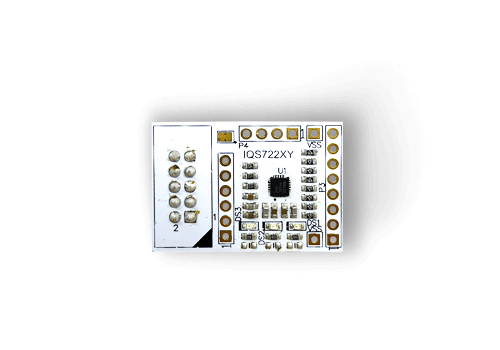

  • 1x IQS7222C stamp

Embed into custom design and interface to host MCU to evaluate capacitive functions.

NOTE: Arduino Uno/ST Nucleo not included. CT210/A sold separately.


  • 1x IQS7222A Stamp
  • 1x IQS7222B Stamp
  • 1x IQS7222C Stamp
  • 1x IQS7222D Stamp
  • 1x Twenty button plugin
  • 1x Buttoned scroll plugin
  • 1x Inductive coil and slider plugin
  • 5x IQS7222X Chips
  • 1x CT210A debug and display tool

Connect the plugins to your computer via CT210/A to evaluate capacitive and inductive functions with our GUI software.

NOTE: Arduino Uno/ST Nucleo not included.

Azoteq provides software used for the serial streaming of data to a computer utilising the Azoteq USB-dongles. Each IC has its own dedicated software and is intended for prototyping purposes and can be found on the Azoteq website under Software and Tools.
