IQS370

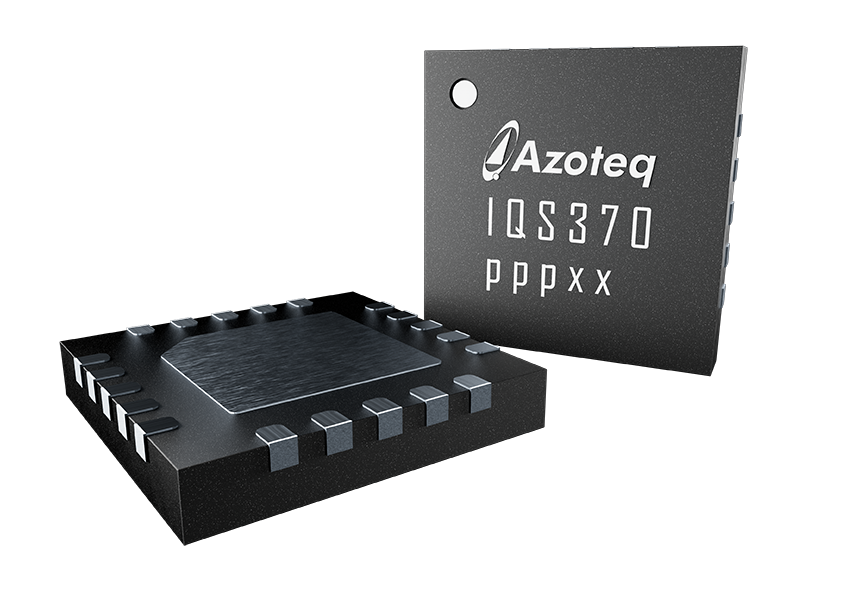

The IQS370 ProxFusion® IC is a four-channel I²C inductive sensing device that offers a compelling alternative to traditional resistive, optical, and Hall-effect encoders and sliders. Its non-contact sensing principle requires a simple mechanical design while enabling reliable, low-maintenance user interfaces. By eliminating the need for rare-earth magnets, inductive sensing delivers excellent immunity to dust, dirt, ambient light, and conducted and radiated electrical noise. Because no physical contact is required between sensing elements, the technology readily supports fully sealed, hermetic interface designs, making it ideal for demanding industrial, consumer, and appliance applications.
1.1 Main Features
- 4 (QFN) external sensor pad connections
- External sensor options:
- One inductive slider
- One absolute encoder
- Built-in basic functions:
- Automatic calibration
- Automatic biasing
- Noise filtering
- Movement trigger indication
- Built-in signal processing options:
- Slider position/encoder position
- Slider movement state / Encoder movement state
- Design simplicity:
- Configurable channel bias voltage using an external input pin
- One-time programmable settings for custom IC configuration (MOQs apply)
- Supply voltage range:
- 1.71 V to 3.5 V (FOSC = 14 MHz, default option)
- 2.2 V to 3.5 V (FOSC = 18 MHz)
- The main oscillator is adjustable in I2C and impacts the voltage limits
- Small packages:
- QFN20 (3 × 3 × 0.55 mm) – 0.4 mm pitch
1.2 Applications
- Waterproof inductive slider/dial/counter applications
- Wearables
- Smart home controllers
- White goods user interface
- Integrated control panel (dial)
