IQS227
The IQS227B/D ProxSense® IC is a fully integrated self-capacitive sensor with dual outputs (Touch and Proximity outputs).
Features:
- Automatic Tuning Implementation (ATI) – Automatic tuning of sense electrode
- Minimal external components
- Data streaming option
- Advanced on-chip digital signal processing
- User selectable (OTP):
- 4 Power Modes
- IO sink/source
- Time-out for stuck key
- Output mode (Direct/Latch/Toggle)
- Proximity and Touch Button sensitivity
- Touch: 6mm plastic, 10mm glass
- Available Supply Voltage Options:
- IQS227B: 1.8 V - 3.6 V
- IQS227D: 2.4 V - 5.5 V
- Low Power Mode:
- IQS227B: 2.5 µA
- IQS227D: 5 µA
- Package Options:
- TSOT23-6
- DFN-6
- WLCSP-8
Applications:
- LCD, Plasma & LED TVs
- GSM cellular telephones – On ear detection/touch keys
- LED flashlights or headlamps
- White goods and appliances
- Office equipment, toys, sanitary ware
- Flameproof, hazardous environment Human Interface Devices
- Proximity detection enables backlighting activation
- Wake-up from standby applications
- Replacement for electromechanical switches
- Find-In-The-Dark (FITD) applications
- Automotive: Door pocket lighting, electric window control
- GUI trigger on proximity detected
Let us help you implement your IQS227.
We’ve done it before.
If you don’t believe us test it yourself.

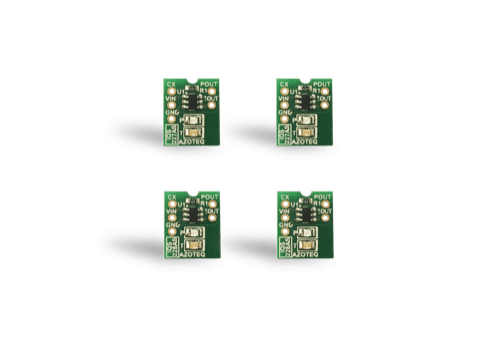

Includes 2x IQS227B Stamp modules and 2x IQS228B Stamp modules.
Embed into custom design and interface to host MCU to evaluate capacitive, inductive and hall-effect functions.
NOTE: CT210/A and IQS227B/228B Shield board sold separately.
NOTE: IQS227/8DEV01 – Contact Azoteq

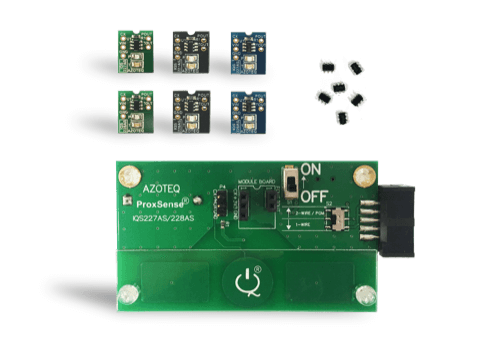

Includes 1x IQS227B/228B Shield board, 3x IQS227B Stamp modules, 3x IQS228B Stamp modules, 3x IQS227B IC’s and 3x IQS228B IC’s.
Connect Shield board and Stamp module to PC via CT210/A to evaluate proximity and touch functions with GUI.
NOTE: CT210/A sold separately.
Azoteq provides software used for the serial streaming of data to a computer utilising the Azoteq USB-dongles. Each IC has its own dedicated software and is intended for prototyping purposes and can be found on the Azoteq website under Software and Tools.
