The IQS550 is a projected capacitive touch and proximity trackpad/touchscreen controller implementation on the IQS5XX platform. The IQS550 features best in class sensitivity, signal-to-noise ratio and automatic tuning of electrodes. Low power proximity detection allows extreme low power operation. The IQS550-BL contains a bootloader to enable loading of the B000 firmware. IQS550-A000 devices can be upgraded to the IQS550-B000 firmware via the bootloader. The IQS550-B000 is a firmware upgrade from the IQS550-A000.



  • Proximity, touch and snap on each channel
  • Multi-touch support up to 5 fingers
  • Single and multi-finger gestures
  • 3584 x 2304 max resolution
  • 15 x 10 rows and columns
  • Scale, orientation and electrode layout selection
  • I2C communications interface
  • ATI: automatic tuning for optimum sensitivity
  • Event and streaming modes
  • Internal voltage regulator and reference capacitor
  • On-chip noise detection and suppression
  • 1 Finger gestures
    • Forward swipe - Next
    • Backward swipe - Previous
    • Upward swipe - Volume Increase
    • Downward swipe - Volume Decrease
    • Tap - Play/Pause
    • Press and hold
  • 2 Finger gestures
    • Pinch & Zoom
    • 2 Finger scroll
    • 2 Finger pan
    • 2 Finger tap
  • 3 Active and 2 low power modes
  • Proximity and pin wake up from low power
  • Supply Voltage 1.65V to 3.6V
  • Proximity low power operation (<10uA)


  • Compact Capacitive Keyboards
  • Remote Control Trackpads
  • Appliances
  • Navigation devices
  • Kiosks and POS terminals
  • E-readers
  • Consumer electronics
We’ve done it before.
If you don’t believe us test it yourself.

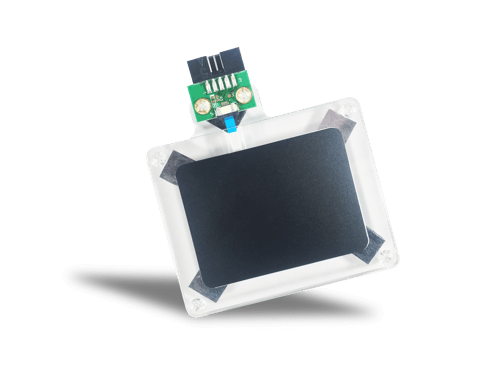

Includes 1x IQS550 Trackpad Demo. Connect Trackpad Demo to PC via CT210/A to evaluate trackpad performance and outputs with GUI.

 NOTE: CT210/A sold separately.

Iqs550 Ev02 Azoteq Product Evaluation Kits

Azoteq provides software used for the serial streaming of data to a computer utilising the Azoteq USB-dongles. Each IC has its own dedicated software and is intended for prototyping purposes and can be found on the Azoteq website under Software and Tools.
