IQS231B

IQS231B

The IQS231B is a single channel capacitive proximity/touch controller for SAR applications. The IQS231B has human movement detection and can detect human interaction during power on and a quick release. The device also features failsafe operation with a heartbeat.

231a

Features:

  • Optimized for SAR applications
  • Human movement detection - distinguish between humans and inanimate objects
  • Failsafe operation with heartbeat
  • Quick release for preventing unwanted activations
  • Minimal external components
  • Standalone and I2C modes
  • OTP or I2C configuration
  • Optional external threshold adjustment
  • Self and Projected capacitive sensing
  • Synchronization input for strategic sampling windows
  • Various power modes: 100Hz, 30Hz, 8Hz, 4Hz sample rates
  • Pin compatible replacement solution for the IQS128
  • 6 pin TSOT23-6
  • 8 pin WLCSP (IQS231A)


Applications:

  • SAR Sensor
  • Hybrid antennas (RF and capacitive sensing combined)
  • Movement sensing applications (user interaction detection, anti-theft)
  • Hold detection for screen activation
  • On-ear detection
We’ve done it before.
If you don’t believe us test it yourself.

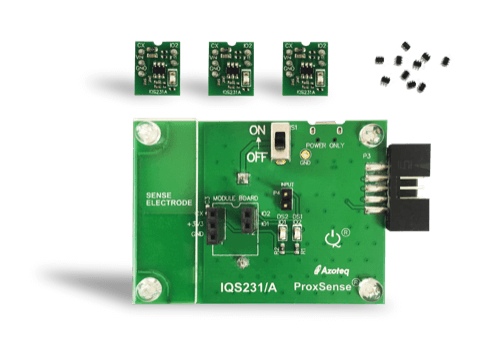

Includes 1x IQS231B Shield board, 3x IQS231B Stamp module and 10x IQS231B IC’s.
Connect Shield board and Stamp module to PC via CT210/A to evaluate user proximity, quick release ability and threshold input select option with GUI.

 NOTE: CT210/A sold separately.

Iqs231 Ev02 Azoteq Product Evaluation Kits

Azoteq provides software used for the serial streaming of data to a computer utilising the Azoteq USB-dongles. Each IC has its own dedicated software and is intended for prototyping purposes and can be found on the Azoteq website under Software and Tools.
