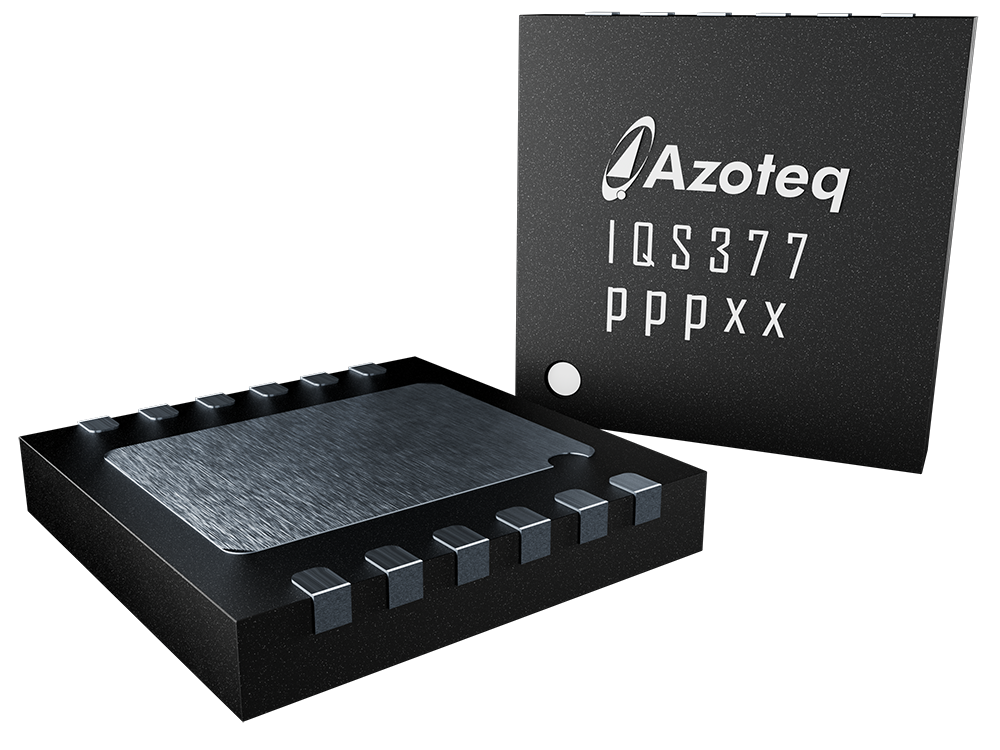

IQS377
The IQS377 ProxFusion® IC is a sensor fusion device for multi-level analogue sensing. An additional channel can be used in tandem to increase the reliability and accuracy of the multi-level trigger solution. The sensor is fully I²C compatible, and on-chip calculations enable the IC to respond effectively even in the lowest power modes.
Main Features
- Highly flexible ProxFusion® device
- 3 external sensor pad connections
- Configure multiple channels on external pins (Self/Mutual/Inductive)
- External sensor options:
- Self-capacitive sensor
- Mutual-capacitive sensor
- Inductive sensor
- Built-in basic functions:
- Automatic tuning
- Noise filtering
- Debounce and Hysteresis
- Dual direction trigger indication
- Built-in Signal processing options:
- Filter halt / Activation output
- Scalable Level Output
- Rapid Trigger
- Proximity UI
- Design simplicity
- PC Software for debugging and optimal setup for performance
- Automated system power modes for optimal response vs consumption
- Distributed ultra-low power (ULP) mode
- I²C communication interface with IRQ/RDY (up to fast plus 1 MHz)
- Hardware-selectable I²C Address (0x44 / 0x46)
- Event and streaming modes with dedicated Output pin assignment
- Supply Voltage: 1.71 V to 3.6 V
- Package options:
- QFN20 (3 × 3 × 0.55 mm) – 0.4 mm pitch
- WLCSP11 (1.48 x 1.08 x 0.345 mm) - interleaved 0.35 mm x 0.35 mm ball pitch
Applications
- Analogue Trigger
- Buttons with Multiple actuation points
