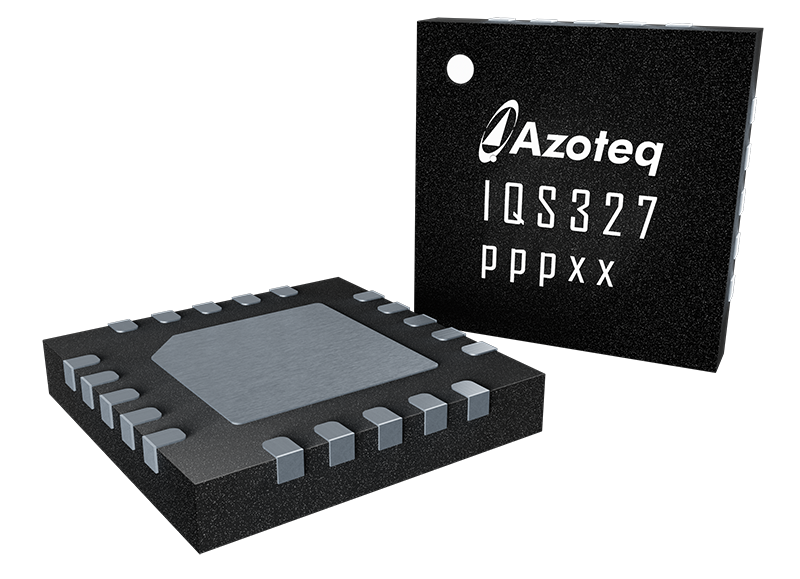

IQS327

The IQS327 ProxFusion® IC is a sensor fusion device for multi-level analogue sensing. An additional capacitive channels can be used in tandem to increase the reliability and accuracy of the multi-level inductive trigger solution. The sensor is fully I2C compatible and on-chip calculations enable the IC to respond effectively even in lowest power modes.

Main Features

  • Highly Flexible ProxFusion® Device
  • 3 external sensor pad connections
  • Configure multiple channels on external pins (Self/Mutual/Inductive)
  • External sensor options
    • Self-capacitive sensor
    • Mutual-capacitive sensor
    • Multi-level inductive sensor
  • Built-in Basic Functions
    • Automatic tuning
    • Noise filtering
    • Debounce and Hysteresis
    • Dual direction trigger indication
  • Built-in Signal Processing Options
    • Filter halt / Activation output
    • Scalable Level Output
    • Proximity UI
  • Design Simplicity
    • PC Software for debugging and optimal setup for performance
  • Automated System Power Modes for Optimal Response vs Consumption
    • Distributed ultra low power (ULP) mode
  • I2C Communication Interface with IRQ/RDY (up to fast plus - 1 MHz)
  • Event, Streaming Standalone Modes
  • Supply Voltage: 1.71 V to 3.5 V
  • Package Options
    • WLCSP11 (1.48 x 1.08 x 0.345 mm) - interleaved 0.35 mm x 0.35 mm ball pitch
    • DFN12 (3 x 3 x 0.75 mm) - 0.5 mm pitch

Applications

  • Analogue triggers
  • Buttons with multiple actuation points
