Trackpad Features

• 5V supply voltage (USB)
• HID-over-USB interface
• Windows 11 certified (PXM0057-401/501)
• Temperature range: -10°C to 50°C
• Storage Temperature: 20°C @ <50%RH
• Typical ESD performance (Product assembly dependent)
  • +/-15kV Air discharge on overlay above touchpad area
  • +/-8kV Contact discharge on exposed metal
• Current consumption:
  • Active = 10mA-11.5mA, 130-145Hz report & scan frequency
  • Idle = 9.3mA, 130-145Hz scan frequency
  • Low power 1 = 5.7mA, 12.5Hz scan frequency
  • Low power 2 = 5.3mA, 6Hz scan frequency
• Mechanical click on bottom half of TP
• 6pin FPC/FFC connector included
• Assembled to IPC600/ 610 Class 2 build standards
• Base Material: FR4 Glass Epoxy
• Cu finish: ENIG (OSP optional), Solder mask: green, Silkscreen: white
• PCB Size = 107.30mm (W) *67.30mm (H) (Tol: +/-0.2mm)
• Active Area = 99.6mm*60.5mm
• PCB Thickness = 1.6mm (Tol+/-0.15mm)
• RoHS3 & REACH compliant
• CE/UL/TUV/Prop65 qualification on special request
• Evaluation tool & demos:
  • PXM0057-401: ENIG finish, 1.1mm glass overlay, USB Type-C connector, Sales demo only.

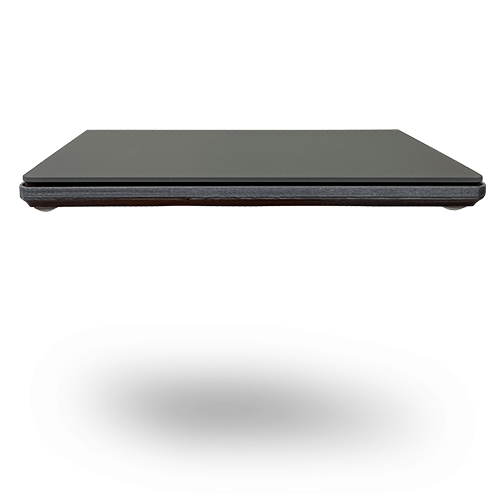

  • PXM0057-501: ENIG finish, 1.1mm glass overlay, USB Type-C connector, + 3D-printed housing, Sales demo only.
• Custom options:
  • PXM0057-101: OSP finish, Custom Overlay (supported thickness 1mm-2mm) PCB sold with double-sided adhesive with paper liner
  • PXM0057-201: ENIG finish, Custom Overlay (supported thickness 1mm-2mm) PCB sold with double-sided adhesive with paper liner
• Custom sizes, interfaces and "click-anywhere" versions also available
