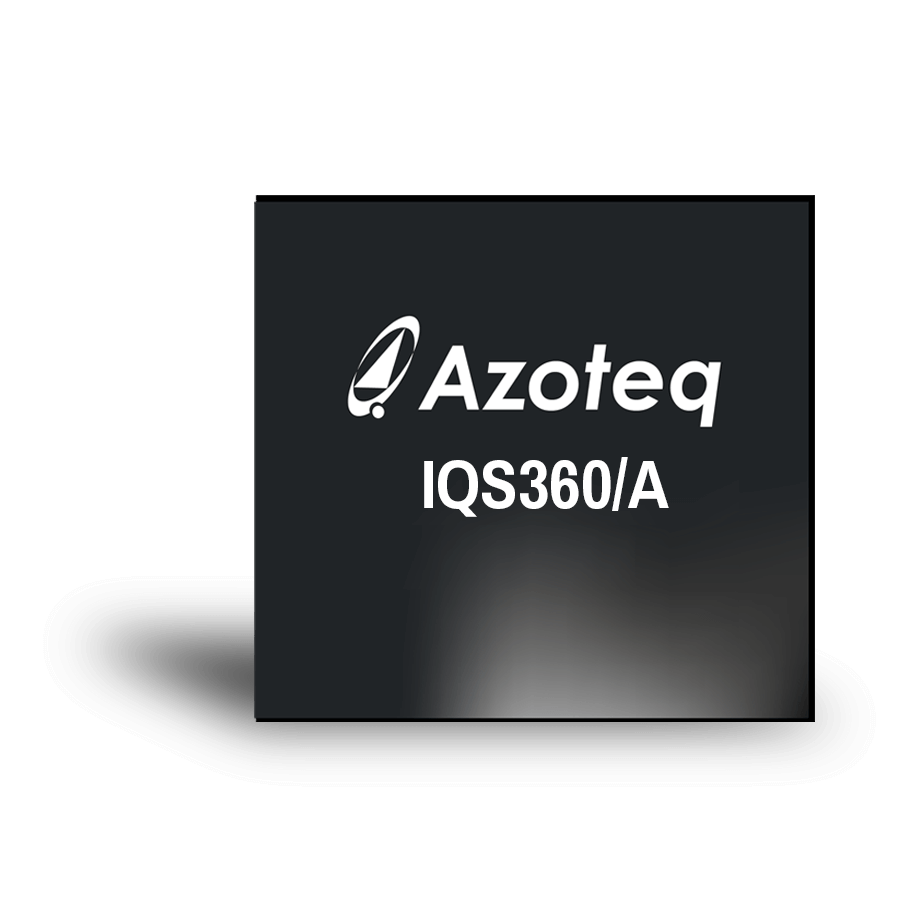

IQS360A

The IQS360 ProxSense® IC is a 12-channel mutual capacitive touch and proximity controller with market leading sensitivity and automatic tuning. The IQS360 provides a cost effective implementation in a small outline package for trackpads up to 4 rows and 3 columns

Features:

  • 12 Mutual Channel Capacitive Controller
  • Trackpad with on chip XY coordinate calculation
  • Configurable up to 4x3 elements
  • 768 x 512 resolution
  • Up to 50Hz report rate
  • Absolute and Relative Tracking Data
  • 1MHz or 2MHz Charge Transfer Frequency
  • Advanced on-chip digital signal processing
  • Automatic Tuning (ATI)
  • User selectable Proximity and Touch thresholds
  • Long proximity range
  • Automatic drift compensation
  • Fast I2C Interface
  • Event mode or Streaming modes
  • 8 PWM LED/ GPIOs drivers (5mA source/10mA sink) (IQS360 only)
  • Low Power, suitable for battery applications
  • Supply voltage: 1.8V to 3.6V


Applications:

  • Trackpads
  • Remote Controls & Smart Remotes
  • Electronic Keypads or Pin pads
Let us help you implement your IQS360A.
We’ve done it before.
If you don’t believe us test it yourself.

Includes 1x IQS360 Interface board, 1x IQS333 Touch Demo board and IQS333 Snap Demo board.
Connect Interface board with Touch Demo board/Snap Demo board and connect to PC via CT210/A to evaluate proximity and touch functions with GUI.

 NOTE: CT210/A sold separately.
