IQS213A

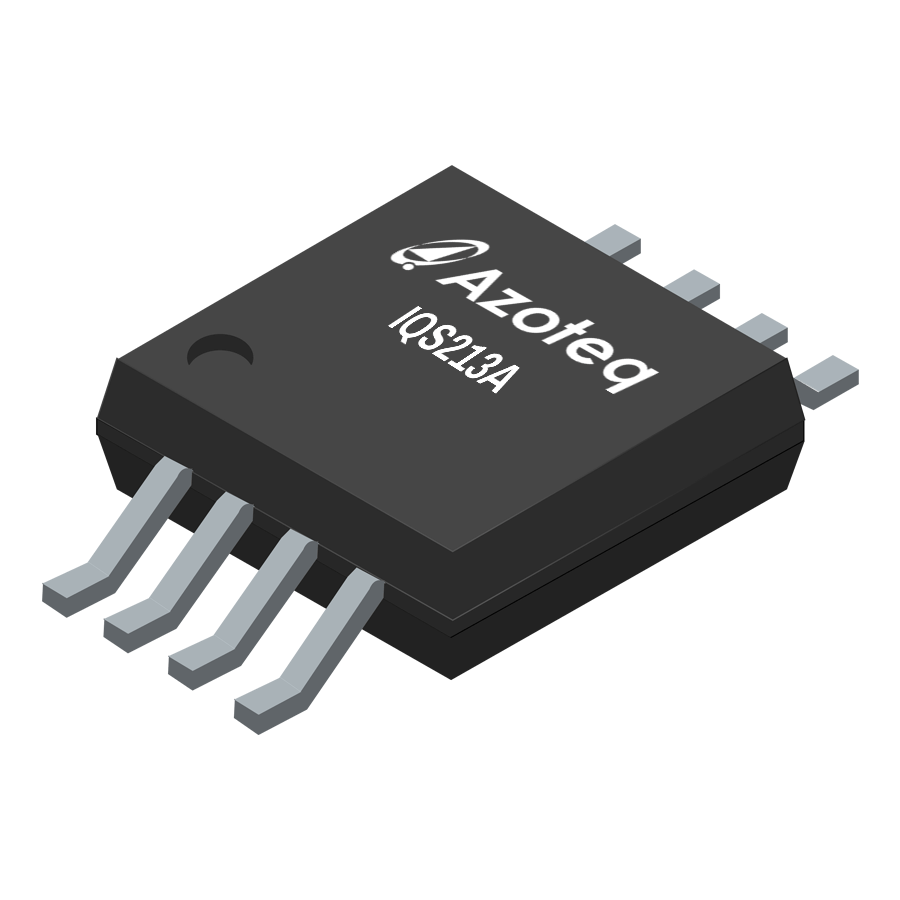

The IQS213A SwipeSwitch™ is a fully integrated two or three channel capacitive swipe sensor with market leading sensitivity and automatic tuning of the sense electrodes. The IQS213A provides a minimalist implementation requiring few external components, with programming options and an I2C compatible interface that allow configuration for specialised applications.

The IQS213A is specifically designed to operate in wet and harsh environments and provides a capacitive solution in applications that previously required bulky and expensive electro-mechanical switches.

213a

Features:

  • 2 or 3 channel sensor
  • Projected or self capacitance
  • Adjustable Swipe function
  • Auto-Off and Advanced Auto-Off Warning Function
  • Supply voltage: 1.8V to 3.6V
  • Internal voltage regulator and reference capacitor
  • Advanced on-chip digital signal processing
  • OTP (One Time Programmable) options available
  • I2C compatible interface
  • Low Power Modes (sub 4μA)
  • Small outline MSOP-10 package

Applications:

  • Electric Toothbrush
  • Electric Shaver
  • Hand Mixer
  • Flashlights, headlamps, keychain lights
  • Toys
  • Splash- / waterproof devices
  • Swipe-to-Unlock / Wake from Standby applications
  • Replacement for electro-mechanical switches
Let us help you implement your IQS213A.
We’ve done it before.
If you don’t believe us test it yourself.

Includes 1x IQS213A Base board, 1x Prototype board and 3x IQS213A Stamp module.
Connect Base board and Stamp module to PC via CT210/A to evaluate proximity, touch and swipe functions with GUI.

NOTE: CT210/A sold separately.
