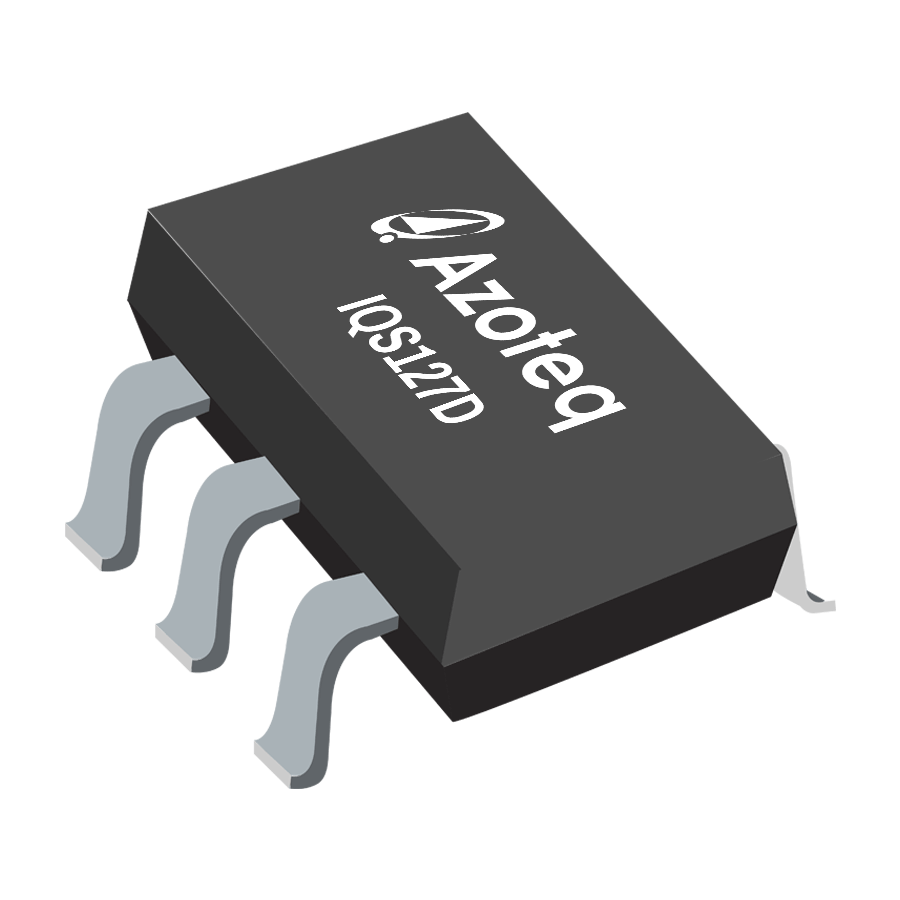

IQS127D

The IQS127D is a single channel capacitive sensor device for applications that require both proximity and touch detection.

Features:

  • Automatic Tuning Implementation (ATI)
  • Internal Capacitor Implementation (ICI)
  • Supply voltage: 2.95V to 5.5V
  • Minimal external components
  • Data streaming option
  • Advanced on-chip digital signal processing
  • Ultra Low Power (15uA)
  • Time-out for stuck key
  • Output mode (Direct / Latch / Toggle)
  • Proximity and Touch Button sensitivity
  • 6 pin TSOT23-6
  • Touch: 6mm plastic, 10mm glass
  • Proximity: 15cm


Applications:

  • Replacement for electromechanical switches
  • LCD, Plasma & LED TVs
    • Proximity enabled backlighting
  • Wake up from standby detection / touch keys
  • White goods and appliances
  • Office equipment, toys
  • Hermetically sealed Human Interface Devices
  • Find-In-The-Dark (FITD) applications
Let us help you implement your IQS127D.
We’ve done it before.
If you don’t believe us test it yourself.

Includes 3x IQS127D Stamp modules.
Embed into custom design and interface to host MCU to evaluate proximity and touch functions.

NOTE: CT210/A and IQS127D Shield board sold separately.

Order Online
User Guide

Includes 1x IQS127D Shield board, 1x IQS127 Touch button, 1x IQS127D Stamp module and 1x IQS127D Stamp Module configured in data streaming mode.
Connect Shield board and Stamp module to PC via CT210/A to evaluate proximity and touch functions with GUI.

 NOTE: CT210/A sold separately.

Order Online
User Guide
