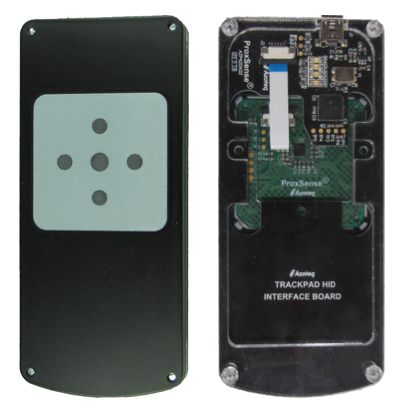

IQS525-TP43-HID Trackpad Evaluation kit


 iqs525-tp43-hid

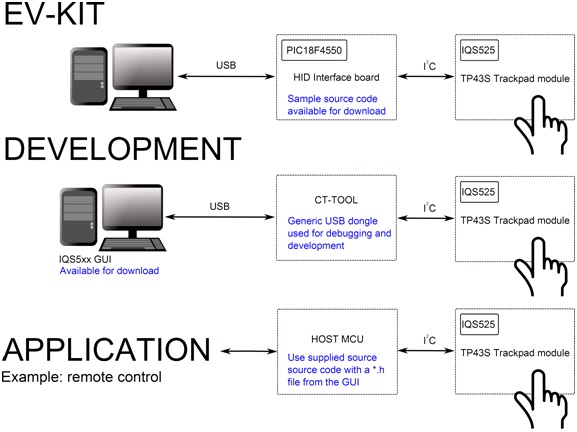

TP43devhid



IQS525-TP43-HID Features:

  • Supplied as qualified PCB module – optimized layout
  • 600 DPI, up to 330Hz report rate
  • Shipped with a 5 snap key overlay
  • Optional Overlay available
    • Smooth
    • Navigation keys
  • Module supports up to 5 finger touch
  • HID supports single touch
  • Mini USB connnection to computer
  • Low Power: 8 µA active standby (module)
  • USB HID interface (sample code available for download)

Applications

  • Remote control: Navigation keys or trackpad
  • Wireless keyboard & media centre controllers
  • Laptop, tablet docking station
  • Substitute for motion based input device



Development Tools

  • DS100 or CT210 for data streaming required



Resources Available for Download
