IQS624 Eval Kit 1

The IQS624 ProxFusion® IC is a multifunctional capacitance and Hall-effect controller designed for applications where any or all of the technologies may be required. The two Hall-effect sensors calculate the angle of a magnet rotating parallel with the sensor. The sensor is fully I2C compatible and on-chip calculations enable the IC to stream the current angle of the magnet without extra calculations.


EV-Kit Overview

  • Hall-effect sensing
  • Capacitive sensing

Evaluation Modes

  • EV01 contains 3 x Modules
  • Embed the small module PCB (stamp) into custom design & interface to host MCU


  • Anemometer
  • Dial or Selector knob
  • Mouse wheel
  • Measuring wheel
  • Digital angle gauge
  • Speedometer for bicycle
    ARMmbedPartner contextual blue

Demo Software: Download

Datasheet: Download

IQS624 Datasheet: Download

Video: View

iqs624ev01 iqs624ev01 iqs624ev01

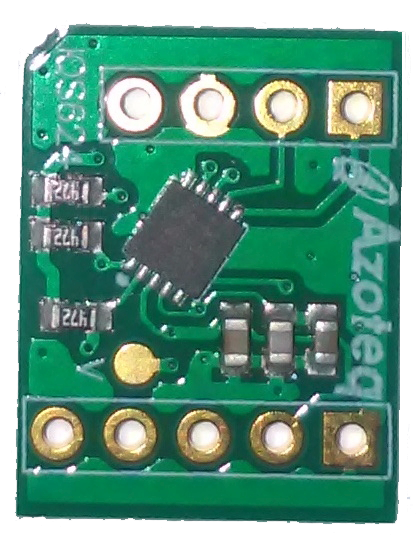

Detachable Stamp Module x 3
