IQS680 Eval Kit 4

The IQS680 ProxFusion® IC is a multifunctional Capacitance, Passive Infrared Radial (PIR) & Inductance sensor designed for applications such as domestic energy efficient lighting applications with movement detection. The IQS680 is an ultra-low power solution designed for short or long term activations through any of the sensing channels. The IQS680 operates standalone or via the I2C protocol and custom configurations are stored in an on-chip EEPROM.



iqs620

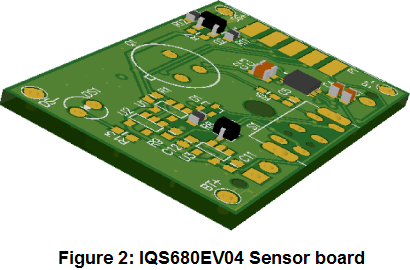

EV-Kit Overview

  • Inductive sensing
  • Self-contained battery powered unit

Evaluation Modes

  • Install into suitable cabinet or drawer
  • Install metal (copper) foil as trigger mechanism

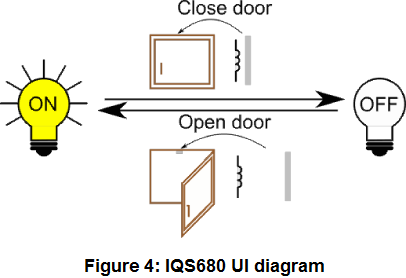

  • Evaluate the auto On/Off mode based on the inductive switch input

Applications:

  • Power saving “In Cabinet” lighting
  • Power saving drawer lighting
  • Smart Lights
  • Night Lights
  • Metal detection
  • White goods and appliances
  • Human Interface Devices







iqs680ev04 iqs680ev04



iqs680ev04
