IQS680 Eval Kit 3

The IQS680 ProxFusion® IC is a multifunctional Capacitance, Passive Infrared Radial (PIR) & Inductance sensor designed for applications such as domestic energy efficient lighting applications with movement detection. The IQS680 is an ultra-low power solution designed for short or long term activations through any of the sensing channels. The IQS680 operates standalone or via the I2C protocol and custom configurations are stored in an on-chip EEPROM.



iqs620

EV-Kit Overview

  • PIR sensing (Movement sensing)
  • Capacitive sensing
  • Self contained battery powered unit

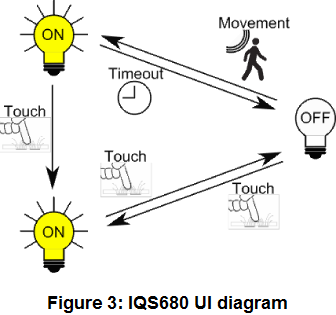

Evaluation Modes

  • Install in suitable location
  • Human movement detected by PIR:
    • Triggers auto On/Off mode
  • Touch detected by capacitive touch pad:
    • Controls On/Off modes

Applications:

  • Under Cabinet Lighting
  • Standard PIR sensor cost reduction
  • Battery powered PIR sensors solutions
  • Smart Lights
  • Night Lights
  • Movement detection
  • White goods and appliances
  • Human Interface Devices
  • Movement activated backlighting

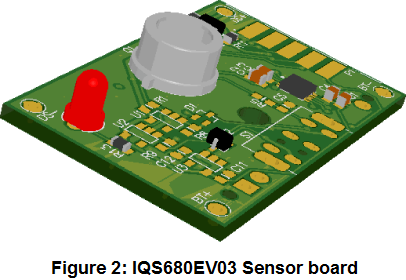

iqs680ev03 iqs680ev03
