IQS316 Evaluation Kit 1


IQS316EV01 Evaluation Kit Features:

  • Modular design: Easily wire into a prototype for rapid prototyping.
  • Connect to the keypad of the IQS316EV02 kit
  • Reference design for IQS316 with user proximity & touch detection ability
  • User friendly GUI interface indicate proximity AND contact to the buttons
  • Can be used in SPI or I2C data streaming mode
  • Connection points to the active shield pin and the Zero Cross detection pin
  • Designed to work with Azoteq CT120/200/220 Configuration Tool and DS100 Data Streamer
  • Download the IQS316EV01 User Guide

IQS316EV01 Kit includes:

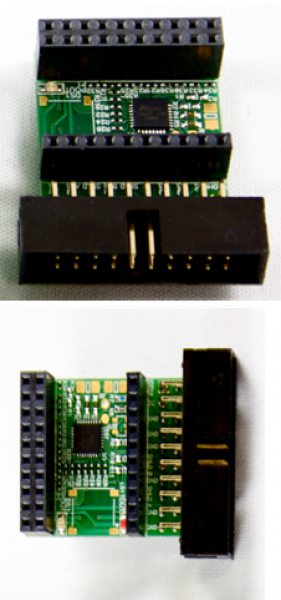

  • 3 x Controller PCB with IQS316 (QFN-32)

Recommended: Configuration Tool (CTxxx) or Data Streamer (DSxxx) with cable to connect to IQS316 Controller, and interface to a computer for data visualization.
