IQS128 Evaluation Kit 1


IQS128EV01 Evaluation Modules’ Features:

  • Modular design: Wire into a prototype for rapid prototyping
  • DYCALTM Technology
  • Reference design for IQS128 with user proximity & touch detection ability
  • LED indicates proximity/touch
  • Can be powered from 2.95V to 5.5V DC
  • OTP bits can be programmed with the Azoteq Configuration Tool CTxxx (not included in the kit)
  • Download the IQS128EV01 User Guide

IQS128EV01 Kit includes:

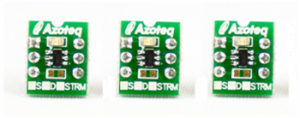

  • 3 x Module PCB with IQS128 (TSOT23-6)

Optional: Configuration Tool (CTxxx) for OTP bit programming
